HINCOL Emulsion RS 1

HINCOL Emulsion RS 1

HINCOL Cold Mix Road Repair Technology

HINCOL Emulsion RS 1 is specially designed water based Bitumen Emulsion with low viscosity
and fast setting time that makes it an ideal product for spray application.

It is chocolate brown in colour and is a free flowing liquid at ambient temperature.

HINCOL Emulsion RS 1 is
manufactured strictly as per IS 8887:2004.

Typical Properties

Properties HINCOL Emulsion RS 1
1. Residue on 600 Micron IS Sieve, % Max 0.05
2. Viscosity @ 50°C (Saybolt Viscometer), sec 20-100
3. Storage Stability after 24 Hour, % Less than 2
4. Binder Residue by Evaporation, % Min 60
5. Average Setting time, Minutes ~15

Advantages

  • No heating required
  • Cost efficient
  • Easy and uniform spray
  • Low temperature curing, fast setting time
  • High adhesive properties
  • Prevents slippage of structural layers
  • Environment friendly

Applications

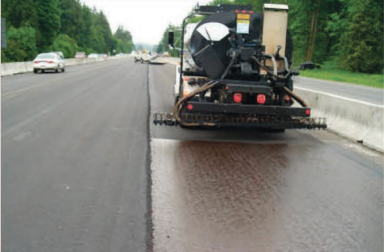

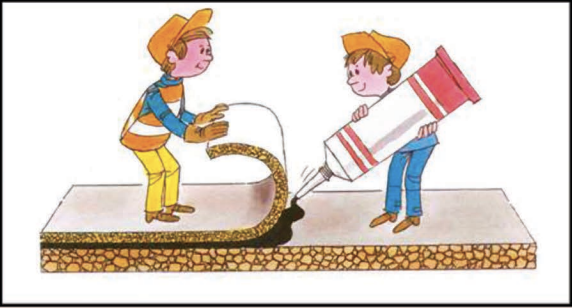

HINCOL Emulsion RS 1 is ideally suited for Tack
Coat application. Tack Coat with HINCOL Emulsion
RS 1 can be applied on bituminous surface, aged
bituminous surface, primed bituminous surfaces
and non bituminous surfaces.

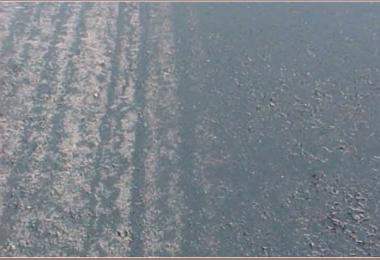

Good Tack Coat Coverage

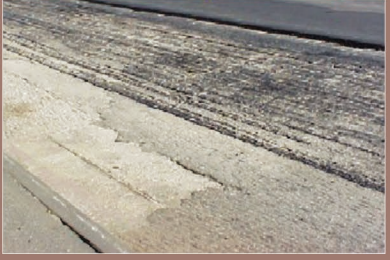

Bad Tack Coat Coverage
Poor Tack Coat VS Good Tack Coat

Recommended Rate of Application

Type of Surfaces Quantity in Kg/10 m² Area
1. Bitumen Surface 2 to 2.5
2. Aged Bitumen Surface 2.5 to 3
3. Primed Surface 2.5 to 3
4. Non Bitumen Surfaces
- Granular Base (Not Primed) 3.5 to 4.0
- Cement Concrete Pavement 3.0 to 3.5

Recommended Procedure

  • Mark the Pothole alongwith the weak area in the vicinity
  • Cut the edges along the marking and remove all loose material up to the damaged depth
  • Remove stagnant water, if any
  • Apply Tack Coat @ 0.5 Kg/m² with HINCOL Emulsion RS 1
  • Cut open HINCOL ROAD BOND bag and fill the Pothole up to a level slightly higher than the adjoining road surface
  • Spray sand dust or rock dust and compact it with a hand hammer or roller
  • Allow traffic after 30 min

To Ensure Best Results

  • Use without diluting Bitumen Emulsion with any solvent
  • Use at ambient temperature
  • Roll the Bitumen Emulsion drums 5 times before using

Availability

HINCOL Emulsion RS 1 is available in

  • Bulk
  • RC Drums 200 Kg
  • MS Drums 200 Kg
  • HDPE Drums 200 Kg
